新款钢丝绳葫芦
1.low noise
2.highly reliable breaking system
3.hoisting motor with a thermal protector
4.Efficient maintenance

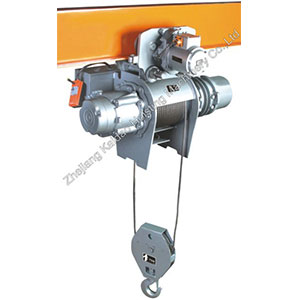

1T electric wire rope hoist with motorized trolley
This is an orthodox type of hoist widely utilized for general purposes.
It boasts high performance for use in rugged jods such as general production in factories,
mining,railroads and warehouse.
Technical Parameter
Modle/型号 | HKDS0102 |
Capacity/起重量(T) | 1 |
Lifting height/起升高度(M) | 6/12 |
Hoisting lifting speed/起升速度(m/min) 50HZ | 11 |
Hoisting lifting speed/起升速度(m/min) 60HZ | 13 |
Lifting motor power/功率 (kw) 50HZ | 1.9 |
Lifting motor power/功率 (kw) 60HZ | 2.3 |
No. of poles/极数 | 4 |
Traversing speed/跑车速度 (m/min) 50HZ | 21 |
Traversing speed跑车速度 (m/min) 60HZ | 25 |
Motor power/功率 (kw) 50hz | 0.30 |
Motor power/功率(kw) 60hz | 0.36 |
No. of poles/极数 | 4 |
wire rope falls/钢丝绳数 | 2 |
wire rope composition/绳索组成 | 6xFi(29)-B |
Wire rope dia./绳索直径(mm) | Φ8 |
Operating method/操作方式 | Push-botton operation |
Electric source/电源 (3 phase) | 200-600V 50Hz/60Hz |
