新款5吨钢丝绳电动葫芦
1.low noise
2.highly reliable breaking system
3.hoisting motor with a thermal protector
4.Efficient maintenance

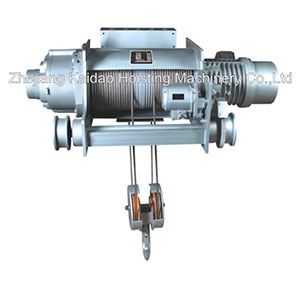

5T electric wire rope hoist with double rail type trolley
The double rail hoist is ideally employed as an overhead traveling crane,Since the self-adjusting centre core is adopted,the wheels closely follow the rails and are hard to derail
during operation.The compact,dustproof structure occupies minimal space and requires
less maintenance.Installation cost can be reduced.
Technical Parameter
Modle/型号 | HKDD0504 |
Capacity/起重量(T) | 5 |
Lifting height/起升高度(M) | 6/9/12 |
Hoisting lifting speed/起升速度(m/min) 50HZ | 6.7 |
Hoisting lifting speed/起升速度(m/min) 60HZ | 8 |
Lifting motor power/功率 (kw) 50HZ | 5.9 |
Lifting motor power/功率 (kw) 60HZ | 7 |
No. of poles/极数 | 4 |
Traversing speed/跑车速度 (m/min) 50HZ | 21 |
Traversing speed/跑车速度 (m/min) 60HZ | 25 |
Motor power (kw)/功率 50hz | 0.45 |
Motor power(kw)/功率 60hz | 0.55 |
No. of poles/极数 | 4 |
wire rope falls/钢丝绳数 | 4 |
wire rope composition/绳索组成 | 6xFi(29)-B |
Wire rope dia.(mm)/绳索直径 | Φ12.5 |
Operating method/操作方式 | Push-botton operation |
Electric source (3 phase)/电源 | 200-600V 50Hz/60Hz |
