5吨新款四绳钢丝绳葫芦
1.low noise
2.highly reliable breaking system
3.hoisting motor with a thermal protector
4.Efficient maintenance

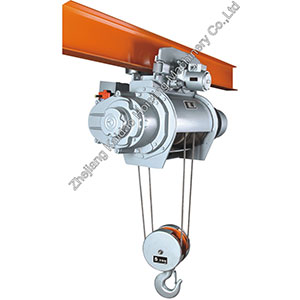

5T electric wire rope hoist with motorized trolley
This is an orthodox type of hoist widely utilized for general purposes.
It boasts high performance for use in rugged jods such as general production in factories,mining,
railroads and warehouse.
Technical Parameter
Modle | HKDS0504 |
Capacity(T) | 5 |
Lifting height(M) | 9/12 |
Hoisting lifting speed(m/min) 50HZ | 6.7 |
Hoisting lifting speed(m/min) 60HZ | 8 |
Lifting motor power (kw) 50HZ | 5.9 |
Lifting motor power (kw) 60HZ | 7 |
No. of poles | 4 |
Traversing speed (m/min) 50HZ | 21 |
Traversing speed (m/min) 60HZ | 25 |
Motor power (kw) 50hz | 0.63 |
Motor power(kw) 60hz | 0.75 |
No. of poles | 4 |
wire rope falls | 4 |
wire rope composition | 6xFi(29)-B |
Wire rope dia.(mm) | Φ12.5 |
Operating method | Push-botton operation |
Electric source (3 phase) | 200-600V 50Hz/60Hz |
